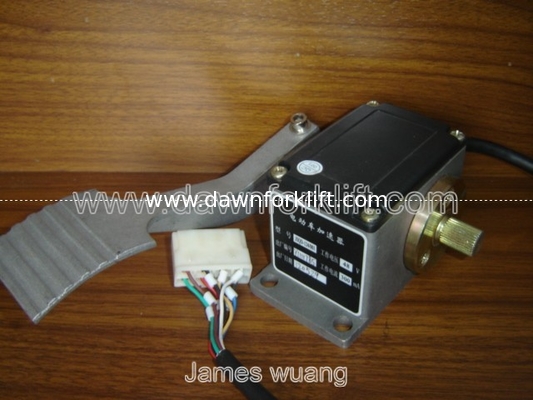

JSQD-124/001 0-5V Electronic Foot Pedals Forklift Throttle Golf Accelerator Used for Curtis Controller

This product can be costomized,Mini order:200pcs/1 item.



 Model :JSQD-124/001

     Throttle working voltage:12V

       Throttle output :0----5V

       Forward/Reversing signal input/output voltge:48V

       Leads:with 500mm  Leads

       Mounting:3pcs 8mm Fixing holes in base

       Rated Current : 300mA

       Operating Temperature:  -20°c to +60°c



JSQD-124/001-001 Wiring Diagram:

Pin 1: Brown       +12V input(working voltage)

Pin 2: Green        Battery Negative(B-)

Pin 3: Black         48V Forward signal output(forward 48v output TO 1215 P10)

Pin 4: Red           48v Forward signal input(From Main forward/reversing switch 48V input)

Pin 5:Yellow        0-5v Throttle output(TO curtis 1215 P15)

Pin 6:Blue           48v Reversing signal input(From Main forward/reversing switch 48V input)



Pin 7:White        Battery Negative(B-)

Pin 8:Gray         48V Reversing signal output(forward 48v output TO 1215 P11)





Ideal for tough environments such as material handling, foot pedals are used with Curtis electronic motor speed controllers, as well as models by other manufacturers. Designed for maximum installation flexibility and durability, these pedals are made of rugged aluminum castings.

Foot pedals are used with Curtis electronic motor speed controllers( CURTIS PMC 1215 / 1219 series).
Foot pedals are used with Curtis electronic motor speed controllers( CURTIS PMC12XX series).
