Product Description

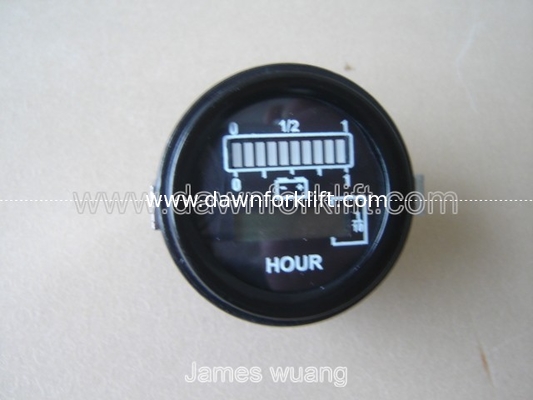

808Y48BZ 48V Battery Gauge Hour Meter

For Curtis 803RB  BCJ3010 series Type



Model:808Y48BZ1

Working voltage:48V



Mounting Hardware and Instructions included

1:The Model 808 Installation Kit includes a pre-assembled mating connector.

2:The Model 808 fits into a dash-panel cutout measuring  (52 mm).

3:Dimensions:diameter 51.46 mm,thickness 68 mm maximum.

Gauge Features

1:Flashing red LED signals energy reserve alarm at 70% discharged.

2:Double flashing red LEDs signal empty alarm at 80% discharged.

3:Normally closed relay opens at 80% discharge for lift lockout. This unique holding relay will only lock out at the end of a lift cycle.

4:Recognizes improperly charged battery.
5:Keyswitch activated LED display (Fuel gage electronics are energized as long as they remain connected to the battery).
6:Wide range adjustable discharge profile.
7:Dual reset methods in each gage:Open Circuit Reset for vehicles that exchange batteries and Charge Tracking Reset for vehicles whose batteries remain connected to the gage during recharge.
Hour Meter Features
1:Monitors use-time throughout the equipment’s lifespan.
2:Records and displays up to 99,999.9 hours on its LCD, rolls over and continues to count and display.
3:Hour meter LCD remains on as long as battery is connected.
4:Stores latest total in EEPROM nonvolatile memory, without need of power.
5:Operates and displays in temperatures from -40 to +65 under harsh conditions of vibration, shock, moisture and dust.

The 808Y series hour meter has five items are as follows:

1:808Y24BZ1 24v

2:808Y36BZ1 36v

3:808Y48BZ1 48v

4:808Y72BZ1 72v

5:808Y80BZ1 80v
