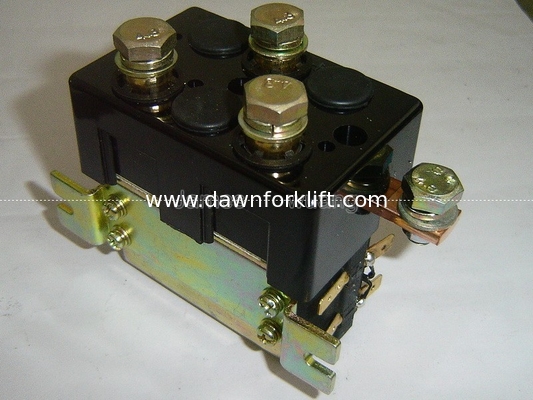

24V/36V/48V DC Forward/Reversing changeover Contactor For Albright DC88 Type

24V/36V/48V DC Forward/Reversing changeover Contactor For Albright DC88 Type

24V/36V/48V DC Forward/Reversing changeover Contactor For Albright DC88 Type

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: DC-88

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 3 days
Payment Terms: Palpay & T/T
Contact Now
Detailed Product Description
Electricity Type: DC Number Of Pole: 4
Phase: 2 Main Circuit Rating Voltage: 24-48V
Main Circuit Rating Current: 100a

DC-88 24V/36V/48V DC Contactor For Albright DC88B-317T/360T DC88-5 Type Forward/Reversing changover Contactor

Model:DC-88

Coil voltage:24v 36v 48v

Thermal Current Rating           100%             100A

Intermittent Current Rating     30%Duty        180A

                                                       70%Duty        125A



The DC88 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.

They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

The DC88 main contact circuit, designed for motor reversing, is such that it has a built in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

DC88 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. Main terminals can be configured in a variety of ways in order to suit the application.

24V/36V/48V DC Forward/Reversing changeover Contactor For Albright DC88 Type 24V/36V/48V DC Forward/Reversing changeover Contactor For Albright DC88 Type
