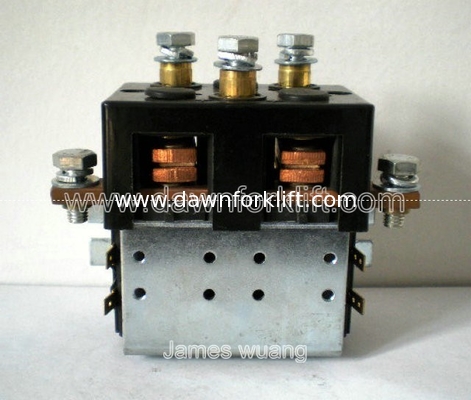

Forward/Reversing changeover 48V Contactor For Albright DC182B-699 Linde 0009763512 Type

Forward/Reversing changeover 48V Contactor For Albright DC182B-699 Linde 0009763512 Type

 Forward/Reversing changeover 48V Contactor For Albright DC182B-699 Linde 0009763512 Type

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: DC182b-699

Payment & Shipping Terms:

Delivery Time: 3 days
Payment Terms: Palpay & T/T
Contact Now
Detailed Product Description
Electricity Type: DC

 Forward/Reversing changeover 48V Contactor For Albright DC182B-699 Linde 0009763512 Type

Model:DC182B-699

Coil voltage:48v



Thermal Current Rating           100%             150A

Intermittent Current Rating     30%Duty        275A

                                                  70%Duty        180A



The DC182 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.

They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

The DC182 main contact circuit, designed for motor reversing, is such that it has a built in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. Main terminals can be configured in a variety of ways in order to suit the application.

  Forward/Reversing changeover 48V Contactor For Albright DC182B-699 Linde 0009763512 Type
