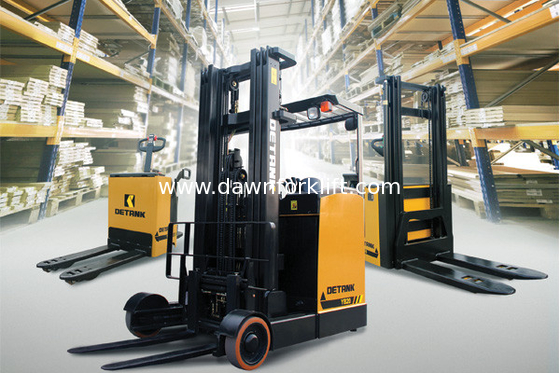

Chery Detank YB20 2.0T Reach Electric Fork Lift Trucks
Model:YB20
| Model | |||
|---|---|---|---|
| YB20 | |||
| Features | Drive Type | Storage Battery | |
| Operating Type (Manual, Walk, Behind, Ride-on, Sit-down) | Sit-down | ||
| Rated Load Weight | kg | 2000 | |
| Lifting Height | mm | 5600 | |
| Free Lifting Height | mm | 85 | |
| Load Center Distance | mm | 600 | |
| mm | |||
| Wheelbase | mm | 1510 | |
| Fork Size | mm | 40*122*1220 | |
| Fork Outter Distance | mm | 760 | |
| mm | |||
| mm | |||
| mm | |||
| mm | |||
| Min. Turning Radius | mm | 1725 | |
| Performance | Max. Travel Speed Full load/No load | km/h | 9.5/10.5 |
| Max. Lifting Speed Full load/No load | mm/s | 260/360 | |
| Max. Lowering Speed Full Load/No load | mm/s | 500/400 | |
| Max. Gradeability Full load/No load | % | 10/15 | |
| Dimension | Overall Height (when fork is not raised) | mm | 2180 |
| Max Height (when fork is raised) | mm | 6530 | |
| Overall Length | mm | 2565 | |
| Overall Width | mm | 1290 | |
| Weight | Weight (Excl. Battery) | kg | 2952 |
| kg | |||
| kg | |||
| Wheel | Tire (Rubber, Elastomer, Polyurethane, Pneumatic) | Polyurethane | |
| Wheel Size, Driving Wheel | mm | Φ343*140 | |
| Wheel Size, Driven Wheel | mm | Φ350*108 | |
| mm | |||
| Number of Wheels (X=driving wheel) Front/Rear | 1x +2/4 | ||
| mm | |||
| mm | |||
| Battery | kw | ||
| kw | |||
| Batteary | V/Ah | 48V 500AH | |
| kg | |||
| mm | |||
| Other | |||
