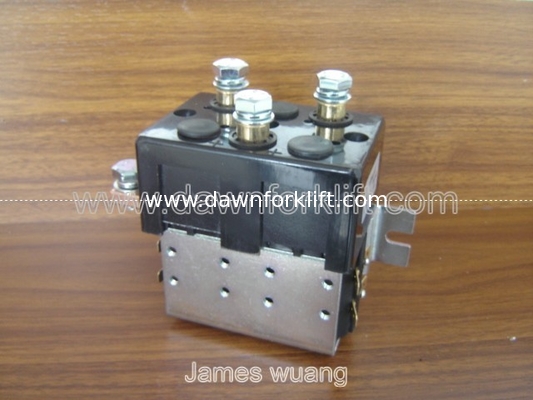

DC-182 24V/48V/80V DC Contactor For Albright DC182-3 DC182B-537T DC182B-7 Type Forward/Reversing changover Contactor
Model:DC-182
Coil voltage:24v 48v 80v
Thermal Current Rating 100% 150A
Intermittent Current Rating 30%Duty 275A
70%Duty 180A
The DC182 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.
The DC182 main contact circuit, designed for motor reversing, is such that it has a built in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.
DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. Main terminals can be configured in a variety of ways in order to suit the application.
