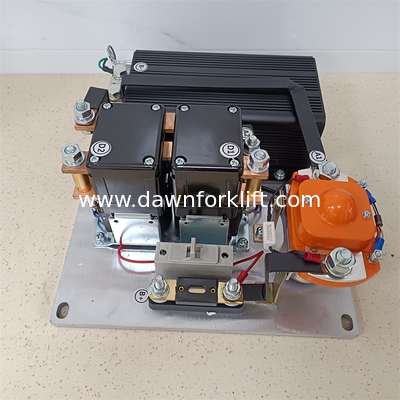

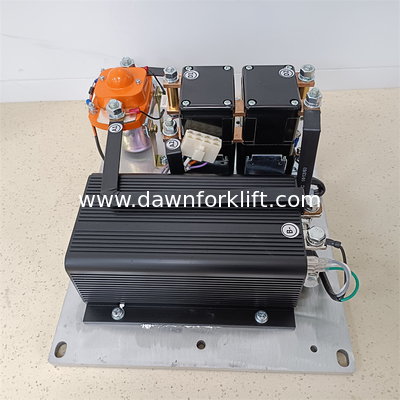

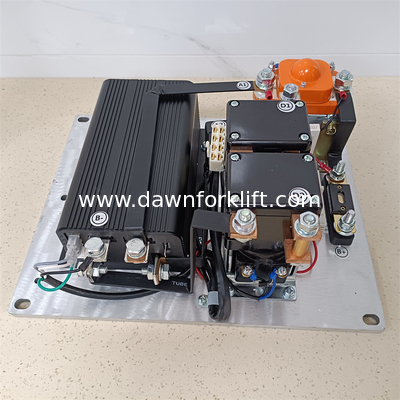

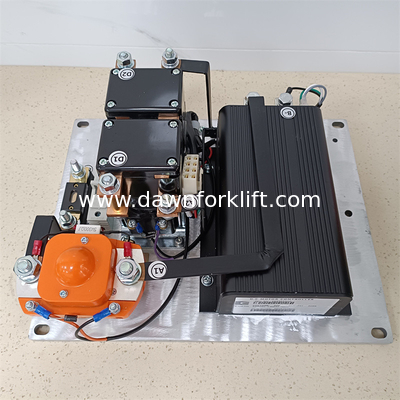

24V 36V 48V 60V 72V 80V Motor Speed Controller Assembly with Reversing Contactor ANL Fuse Holder for Golf Cart Forklift Truck
Apply to : Electric Jeepneys ,Golf Carts ,Electric Forklift , Tow Tractor and other electric vehicle.
Vehicle System Requirements: Battery cell voltage , 4 Wires DC Series Motor, 0-5K ohm Throttle pedal,Forward / Reversing Switch,Battery Gauge,These accessories is not included in this controller assembly.
1: 24V 500A:
Motor Speed Controller: 1205M-4601 24V 500A
Reversing contator: GE304 24V 300A
Main Contactor: ZJ400D 24V 400A
Throttle type : 0-5K ohm
2: 36V 500A
Motor Speed Controller: 1205M-5603 36V 500A
Reversing contator: GE304 36V 300A
Main Contactor: ZJ400D 36V 400A
Throttle type : 0-5K ohm
3: 48V 500A
Motor Speed Controller: 1205M-5603 48V 500A
Reversing contator: GE304 48V 300A
Main Contactor: ZJ400D 48V 400A
Throttle type : 0-5K ohm
4: 60V 500A
Motor Speed Controller: 1205M-6B403 60V/72V 400A
Reversing contator: GE304 60/72V 300A
Main Contactor: ZJ400D 60V 400A
Throttle type : 0-5K ohm
5: 72/80V 400A
Motor Speed Controller: 1205M-7B403 72/80V 400A
Reversing contator: GE304 72/80V 300A
Main Contactor: ZJ400D 72/80V 400A
Throttle type : 0-5K ohm
