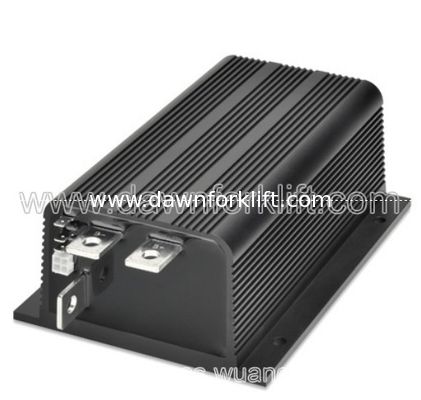

Original Curtis 1205M-6402/1205M-6B402 60V/72V 400A motor controller For Electric truck

Product Details:

Place of Origin:	China
Brand Name:	Curtis
Model Number:	curtis 1205M-6402

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	3days
Payment Terms:	paypal,T/T

Contact Now

Detailed Product Description

Genuine Curtis 1205M-6402 1205M-6B402 60V&72V 400A Motor Controller

Only used for electric truck

Nominal input voltage:60V&72V
Current rating 2minute:400A

The curtis 1204M/1205M series controllers are updated versions of the 1204 and 1205 controllers,withs the added functionlity of being programmable-via the curtis 1311 handheld programmer or the 1314 pc programming station. This means the controllers can be tailored to the needs of specitic applications.

Specifications:

Frequency of Operation: 15 kHz
Standby Current: less than 20 mA
Standard Throttle Input: 0-5k ohms ±10% (others available)
Weight: 2.7 kg
Full Power Operating Temperature Range: -25°Celsius to 75°Celsius (controller temperature)

Original Curtis 1205M-6402/1205M-6B402 60V/72V 400A motor controller For Electric truck
