|Place of Origin:||China|
|Delivery Time:||3 days|
|Payment Terms:||Paypal T/T|
|Display Type:||Analog And Digital|

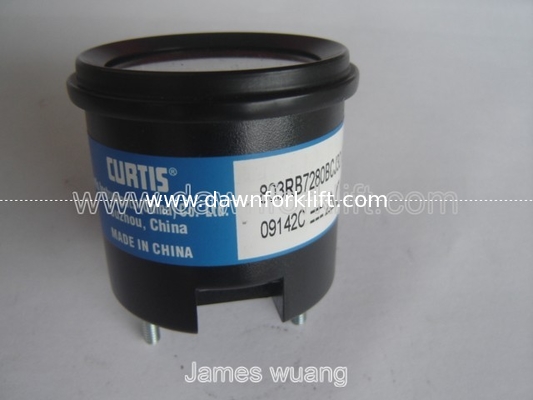

Curtis 803 RB7280BCJ3010 72V/80V Battery Gauge Hour Meter
Working voltage:72V or 80V
Mounting Hardware and Instructions included
1:The Model 803 Installation Kit includes a pre-assembled mating connector.
2:The Model 803 fits into a dash-panel cutout measuring (52 mm).
3:Dimensions:diameter 51.46 mm,thickness 68 mm maximum.
1:Flashing red LED signals energy reserve alarm at 70% discharged.
2:Double flashing red LEDs signal empty alarm at 80% discharged.
3:Normally closed relay opens at 80% discharge for lift lockout. This unique holding relay will only lock out at the end of a lift cycle.
4:Recognizes improperly charged battery.
5:Keyswitch activated LED display (Fuel gage electronics are energized as long as they remain connected to the battery).
6:Wide range adjustable discharge profile.
7:Dual reset methods in each gage:Open Circuit Reset for vehicles that exchange batteries and Charge Tracking Reset for vehicles whose batteries remain connected to the gage during recharge.
Hour Meter Features
1:Monitors use-time throughout the equipment’s lifespan.
2:Records and displays up to 99,999.9 hours on its LCD, rolls over and continues to count and display.
3:Hour meter LCD remains on as long as battery is connected.
4:Stores latest total in EEPROM nonvolatile memory, without need of power.
5:Operates and displays in temperatures from -40 to +65 under harsh conditions of vibration, shock, moisture and dust.
