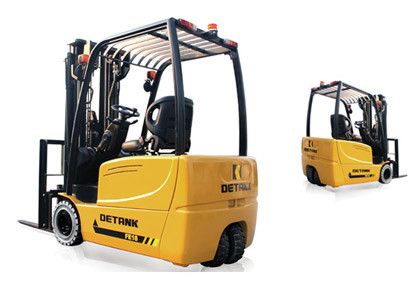

Chery Detank FE18 1.8T 3-wheel Electric Forkliftlift Truck
Model:FE18
| Description | Item | Unit | FE16 FE18 FE20 | ||
|---|---|---|---|---|---|
| Features | Power Type | Battery | Battery | Battery | |
| Rated Load | kg | 1600 | 1800 | 2000 | |
| Load Center | mm | 500 | 500 | 500 | |
| Lifting Height | mm | 3300 | 3300 | 3300 | |
| Free lifting height | mm | 85 | 85 | 90 | |
| Fork(L*W*H) | mm | 920*100*35 | 920*100*35 | 920*122*40 | |
| Mast Tilt Angle(F/R) | . | 6/6.5 | 6/6.5 | 6/6.5 | |
| Min. Turning Radius | mm | 1580 | 1580 | 1580 | |
| Min.Right Angle Stacking Aisle | mm | 3300 | 3300 | 3300 | |
| Min.Intersecting Aisle | mm | 1780 | 1780 | 1780 | |
| Min. Ground Clearance | mm | 95 | 95 | 95 | |
| Overhead Guard Clearance | mm | 1990 | 1990 | 1990 | |
| Heigt from the seat to overhead guard | mm | 1000 | 1000 | 1000 | |
| Front Overhang | mm | 375 | 375 | 375 | |
| Performance | Max Travel Speed(Load/Unload) | Km/h | 13/14.5 | 13/14.5 | 12.5/14 |
| Max Lifting Speed(Load/Unload) | m | 320/450 | 300/420 | 290/400 | |
| Max Gradeability | % | 15 | 15 | 15 | |
| Dimension | Overall length(Without fork) | mm | 1954 | 1954 | 1954 |
| Overall width | mm | 1100 | 1100 | 1100 | |
| Overall Height,Fork Raised(With Backrest) | mm | 4174 | 4174 | 4174 | |
| Mast Heiht | mm | 2165 | 2165 | 2165 | |
| Power | Tyre/Front | 18*7-8 | 18*7-8 | 18*7-8 | |
| Tyre/Rear | 15*4.5-8 | 15*4.5-8 | 15*4.5-8 | ||
| Wheelbase | mm | 1390 | 1390 | 1390 | |
| Tread(F/R) | mm | 940/180 | 940/180 | 940/180 | |
| Weight(Unload) | kg | 3050 | 3150 | 3250 | |
| Battery(Voltage/Capacity) | V/Ah | 48/500 | 48/500 | 48/600 | |
| Running Motor | KW | 4.5*2 | 4.5*2 | 4.5*2 | |
| Lifting Motor | KW | 10 | 10 | 10 | |
| Controller | CURTIS | CURTIS | CURTIS | ||
| Control Model | AC | AC | AC | ||
| Working pressure | Mpa | 14.5 | 14.5 | 17.5 | |
