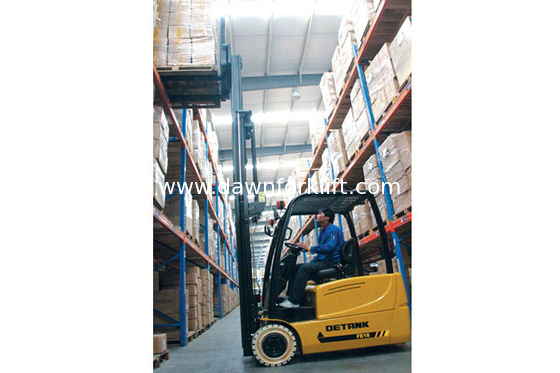

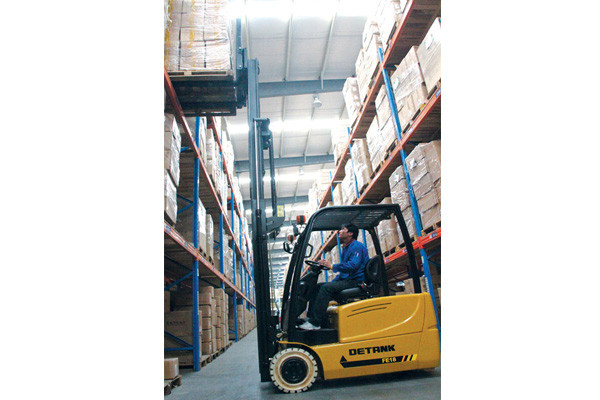

Chery Detank FE20 2.0T 3-wheel Electric Forklift

Chery Detank FE20 2.0T 3-wheel Electric Forklift

Chery Detank FE20 2.0T 3-wheel Electric Forklift

Product Details:

Place of Origin: China
Brand Name: Chery Detank
Model Number: FE20

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 30 days
Payment Terms: T/T
Contact Now
Detailed Product Description
Rated Loading Capacity: 2000kg Max. Lifting Height: 3000mm
Fork Length: 920mm Fork Width: 122mm
Overall Dimensions: 1954*1100 Weight: 3250kg
Type: 3-wheel Electric Forklift Power Souce: AC Motor

Chery Detank FE120 2.0T 3-wheel Electric Forkliftlift Truck

3-wheel electric forklift

DescriptionItemUnitFE16         FE18               FE20
FeaturesPower Type BatteryBatteryBattery
Rated Loadkg160018002000
Load Centermm500500500
Lifting Heightmm330033003300
Free lifting heightmm858590
Mast Tilt Angle(F/R).6/6.56/6.56/6.5
Min. Turning Radiusmm158015801580
Min.Right Angle Stacking Aislemm330033003300
Min.Intersecting Aislemm178017801780
Min. Ground Clearancemm959595
Overhead Guard Clearancemm199019901990
Heigt from the seat to overhead guardmm100010001000
Front Overhangmm375375375
PerformanceMax Travel Speed(Load/Unload)Km/h13/14.513/14.512.5/14
Max Lifting Speed(Load/Unload)m320/450300/420290/400
Max Gradeability%151515
DimensionOverall length(Without fork)mm195419541954
Overall widthmm110011001100
Overall Height,Fork Raised(With Backrest)mm417441744174
Mast Heihtmm216521652165
PowerTyre/Front 18*7-818*7-818*7-8
Tyre/Rear 15*4.5-815*4.5-815*4.5-8
Running MotorKW4.5*24.5*24.5*2
Lifting MotorKW101010
 Control Model ACACAC
Working pressureMpa14.514.517.5
