Home /Products/Electric forklift/Chery Detank QB30 3.0T Battery Tractor Electric Tractor

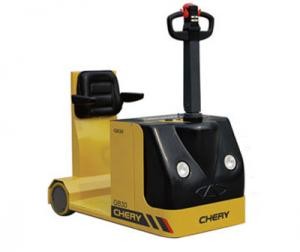

Chery Detank QB30 3.0T Battery Tractor Electric Tractor

1
MOQ
Chery Detank QB30 3.0T Battery Tractor Electric Tractor
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Loading Capacity: 3000kg
Overall Dimensions: 1490*750*1100
Weight: 650kg
Type: Battery Tractor
Coupler Height: 350mm
Basic Infomation
Place of Origin: China
Brand Name: Chery Detank
Model Number: QB30
Payment & Shipping Terms
Delivery Time: 30 days
Payment Terms: T/T
Product Description

Chery Detank QB30 3.0T Battery Tractor Electric Tractor Lift Trucks



Model:QB30

Battery Tractor

Model Battery Tractor
QB30
QB30JE
Features Drive Type 　 Power-driven(Battery)
Operating Type(Manual, Walk, Behind, Ride-on, Sit-down) 　 Ride-on/Walk behind
Rated Traction Weight kg 3000
Coupler Height mm 350
Traction Force (60 min.) N 1800
Traction Force (5 min.) N 4200
Weight Weight (Incl. Battery) kg 650
Axel Load, Drive Side kg 427
Axel Load, Load Side kg 223
Wheel Tire (Rubber, Elastomer, Polyurethane, Pneumatic) 　 Polyurethane
Wheel Size, Driving Wheel mm Φ254x125
Wheel Size, Driven Wheel (Rear Wheel) mm Φ254x100
Number of Wheels (X=driving wheel) Driving/Driven 　 1x /2
Wheel Track, Driven Wheel (Rear Wheel) mm 630
Size Overall Length mm 1490
Overall Width mm 750
Overall Height mm 1100
Ground Clearence to Truck Boday mm 62
Wheelbase mm 1120
Right Angle Aisle Width mm 1200
Min. Turning Radius mm 1350
Performance Travel Speed Full Load/No Load km/h 7.5/9.5
Gradeability Full Load/No Load % 4/10
Brake Type 　 Electromagnetic Brake
Motor Power of Drive Motor kw 3
Battery Voltage/Capacity V/Ah 24/280
Battery Weight kg 320
Battery Size mm 658X250X575
Other Drive Control 　 Field-Effect Tube Control
Driver Ear Noise Sound dB(A) <70
Steering Angle ° 180
