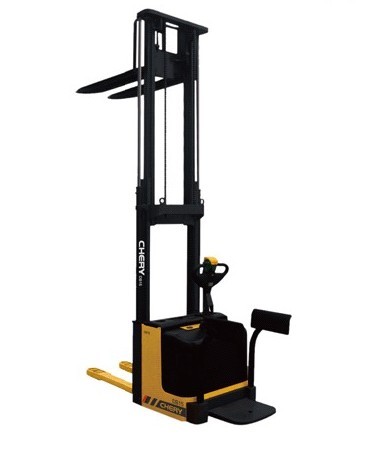

Chery Detank DB15 1.5T Electric Stacker
Model:DB15
Model | Electricity Stacker | ||
---|---|---|---|
DB15 | |||
DB15 | |||
Features | Drive Type | Storage Battery | |
Operating Type (Manual, Walk, Behind, Ride-on, Sit-down) | Ride-on/Walk behind | ||
Rated Load Weight | kg | 1500 | |
Lifting Height | mm | 3000 | |
Free Lifting Height | mm | 85 | |
Load Center Distance | mm | 600 | |
Front Overhang | mm | 780 | |
Wheelbase | mm | 1388 | |
Fork Size | mm | 60/180/1150 | |
Fork Outter Distance | mm | 580 | |
Fork Ground Clearance | mm | 86 | |
Ground Clearance | mm | 28 | |
Operating Handle Height | mm | 1320/960 | |
Min. Right Angle Stacking Aisle Width | mm | 2275 | |
Min. Turning Radius | mm | 1675 | |
Performance | Max. Travel Speed Full load/No load | km/h | 5/5.5 |
Max. Lifting Speed Full load/No load | mm/s | 100/120 | |
Max. Lowering Speed Full Load/No load | mm/s | 125/120 | |
Max. Gradeability Full load/No load | % | 6/10 | |
Dimension | Overall Height (when fork is not raised) | mm | 2025 |
Max Height (when fork is raised) | mm | 3530 | |
Overall Length | mm | 2015 | |
Overall Width | mm | 798 | |
Weight | Weight (Excl. Battery) | kg | 1050 |
Axel Full Load, Drive Side/Load Side | kg | 1100/1450 | |
Axel Empty Load, Drive Side/Load Side | kg | 720/330 | |
Wheel | Tire (Rubber, Elastomer, Polyurethane, Pneumatic) | Polyurethane | |
Wheel Size, Driving Wheel | mm | Φ250x80 | |
Wheel Size, Driven Wheel | mm | Φ80x70 | |
Wheel Size,Balance Wheel | mm | Φ127x57 | |
Number of Wheels (X=driving wheel) Front/Rear | 1x +2/4 | ||
Wheel Track, Driving Wheel | mm | 606 | |
Wheel Track, Load Wheel | mm | 400 | |
Motor | Power of Drive Motor | kw | 1.2 |
Power of Lifting Motor | kw | 3 | |
Battery Voltage/Capacity | V/Ah | 24/210 | |
Battery Weight | kg | 240 | |
Battery Size | mm | 650x250x505 | |
Other | Driver Ear Noise Sound | dB(A) | <70 |
