Home /Products/ZAPI Controller & Parts/ZAPI AC-0 Inverter 24V 150A AC Motor Controller For EP HELI HC Electric Stacker Electric Paller Truck

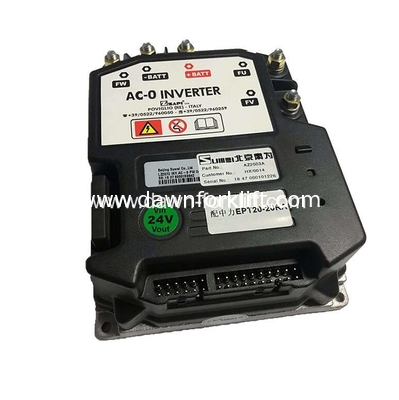

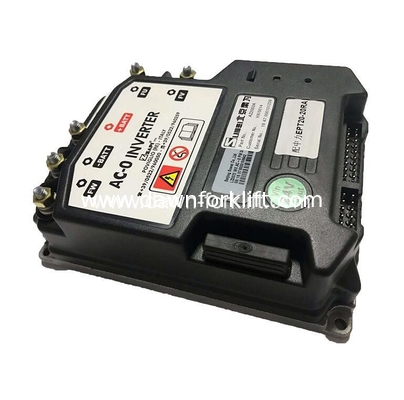

ZAPI AC-0 Inverter 24V 150A AC Motor Controller For EP HELI HC Electric Stacker Electric Paller Truck

1
MOQ
ZAPI AC-0 Inverter 24V 150A AC Motor Controller For EP HELI HC Electric Stacker Electric Paller Truck
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: Italy
Brand Name: ZAPI
Model Number: AC-0
Payment & Shipping Terms
Delivery Time: 7 days
Payment Terms: Paypal & T/T
Product Description

ZAPI AC-0 Inverter 24V 150A AC Motor Controller For EP HELI HC Electric Stacker Electric Paller Truck



The AC-0 Inverter is suitable for Pedestrian, small stacker trucks and Cleaning machine fitted with asynchronous motors up to 1.8 kW. Sensorless/Sense Coil version Same as above but with ZAPI patented sensorless/sense coil control algorithm to be used with encoderless AC motor.



Power section

Power supply: 24V, 36V, 48V
Maximum current:

  • (24V, 36V) 150 Arms (2’)

  • (48V) 120Arms (2’)

Current booster: 10% Imax 10’’
Continuous output power: 1800W
Ambient Temperature range: -30°C +40°C
Maximum heatsink temperature: 78°C (starts to reduce current)

Mechanics

Dimensions: 140x180x58 mm
Connector: Molex Minifit
Protection class: IP54

I/O

9 Digital inputs (input range -Batt ÷ +Batt)
3 Analog inputs (input range 0 ÷ 12V)
1 Incremental encoder port
4 Outputs driving to -Batt
1 Output driving to +Batt

Other features

Flash memory
Can interface
Serial link
