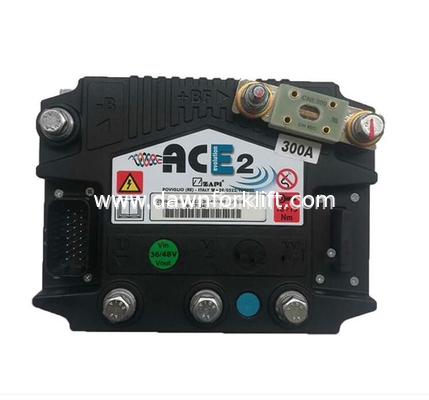

ZAPI ACE2 Inverter 36-48V 500A AC Controller For HC HELI Noblelift Electric Forklift

The ACE2 Inverter is suitable for reach and counterbalanced trucks with single or twin drive motors, high level order pickers and tow tractors fitted with asynchronous motors up to 9kW.
Sensorless/Sense Coil version
Same as above but with ZAPI patented sensorless/sense coil control algorithm to be used with encoderless AC motor

Power section

Power supply: 24V 36V 48V 80V 96V
Maximum current ACE2:

• (24V) 450 Arms (3’)

• (36V, 48V) 400 Arms (3’)

• (80V) 250Arms (3’)

• (96V) 215Arms (3’)

Maximum current ACE2 PW:

• (24V) 500 Arms (3’)

• (36V, 48V) 500 Arms (3’)

• (80V) 350Arms (3’)

• (96V) 300Arms (3’)

Ambient Temperature range: -40° +40°C
Maximum heatsink temperature: 85°C (starts to reduce current)

Mechanics

ACE2 dimensions: 150x200x95 mm
ACE2 PW dimensions: 185x200x95 mm
Connector: Ampseal
Protection: IP65
Available with Al base plate or with finned heatsink

I/O

4 Digital Inputs (input range - Batt ÷ + Batt )
2 Analog inputs (input range 0 ÷ 12V )
2 Outputs driving to - Batt, PWM controlled, 2,0 A continuous current
1 Output to - Batt 1,0 A continuous current

Other features

Can interface
Serial link
