ZAPI FC9026 Smart Display 36/48V For ZAPI Motor Controller

ZAPI FC9026 Smart Display 36/48V For ZAPI Motor Controller

ZAPI FC9026 Smart Display 36/48V For ZAPI Motor Controller

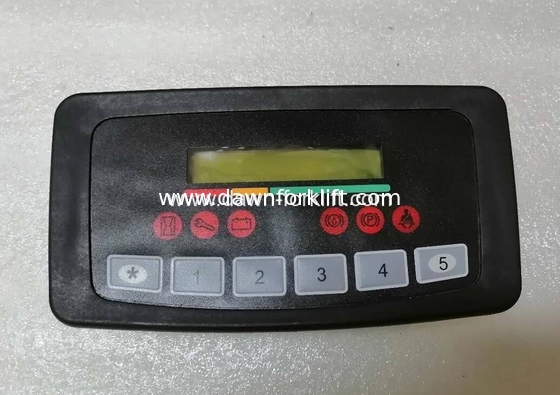

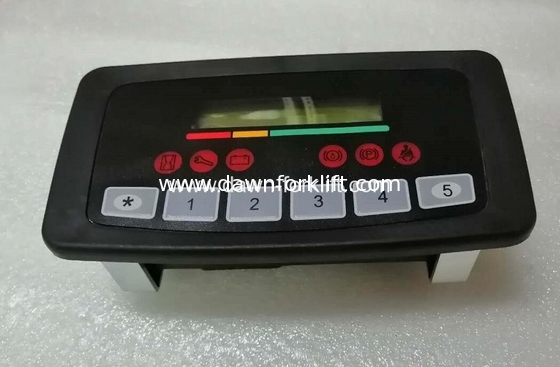

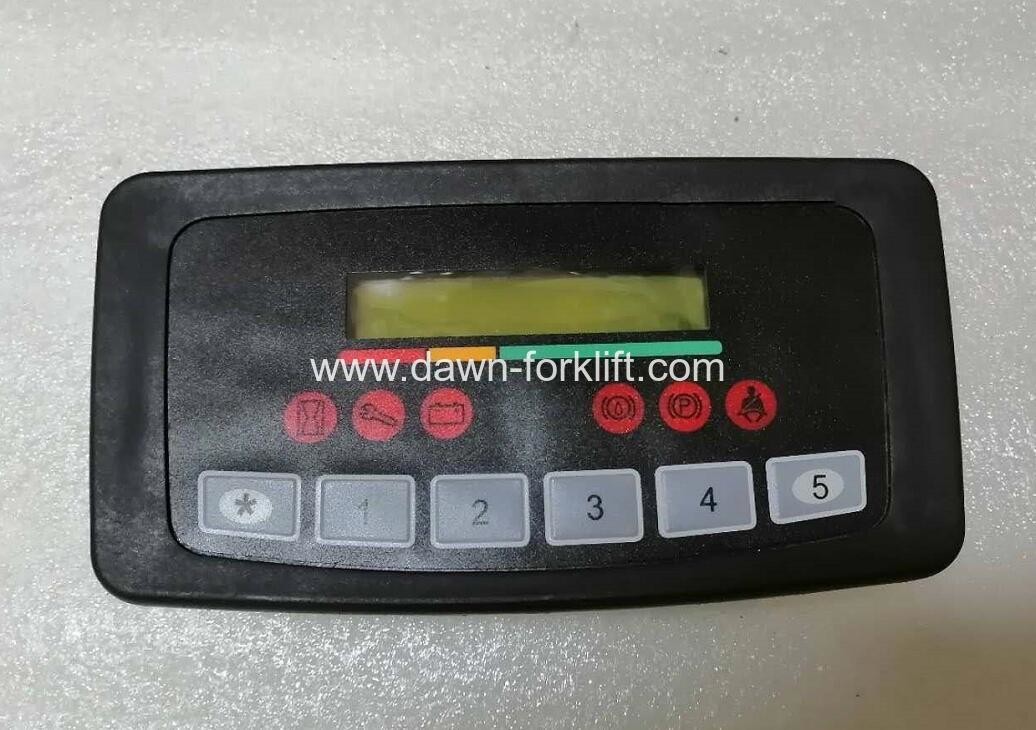

This electronic module is an intelligent operator interface. The display informs the operator of the truck status in real time (BDI, HCs, operating modes, fault control). The membrane keypad is the interactive interface for operators and service engineers to customize truck setups and calibrate truck sensors.

Main features

64 kbytes eeprom to record:

• Operator adjustable parameters

• truck fault logs

• truck hour counters

• operator password

• service password

• maintenance features

• BDI profiles

Power supply

15 - 100V

Communication

• CAN Bus

• RS232 - current loop only for handset and laptop

Diplay Alphanumeric

• 2 lines

• 20 characters each line

• backlight

Leds

6, red colour

Dashboard

membrane, 6 buttons

Inputs

8 DIGITAL

• Input range -Batt +Batt

• Input Impedance max 47 KOhm

• Threshold level 10 Volt

Outputs

2 ON-OFF NPN type 1,5 A
1 ON-OFF NPN type 100 mA

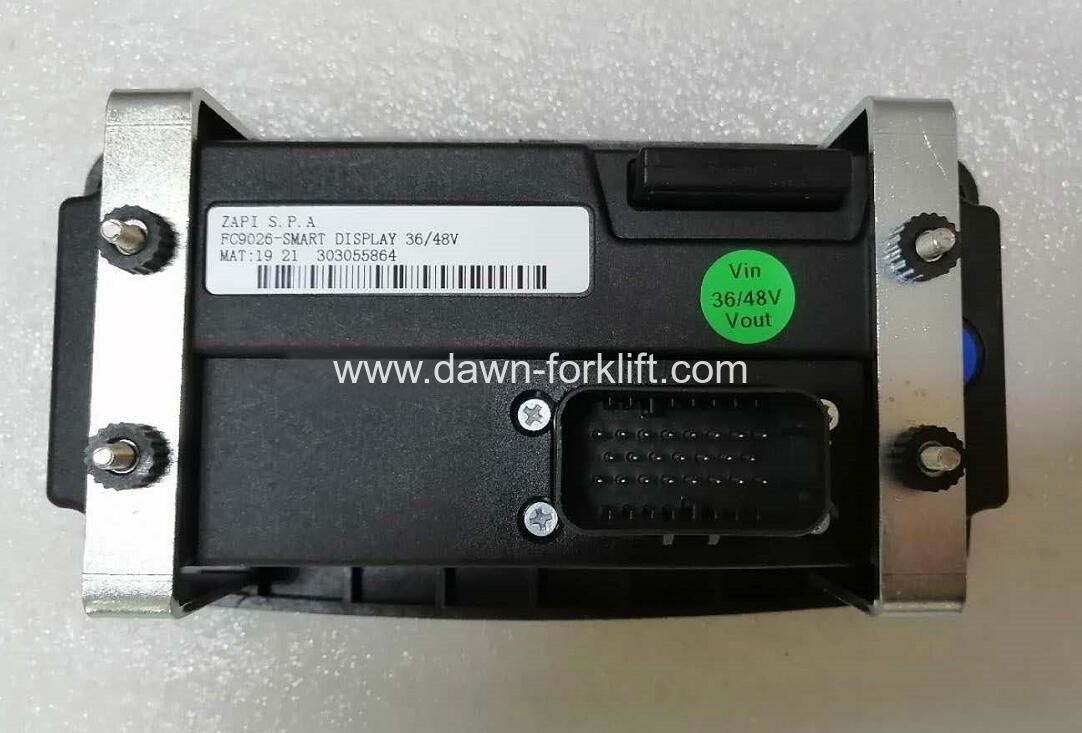

Connectors

Ampseal

Protection class

IP65
