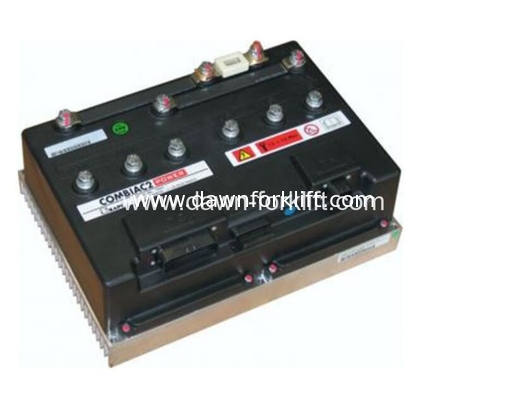

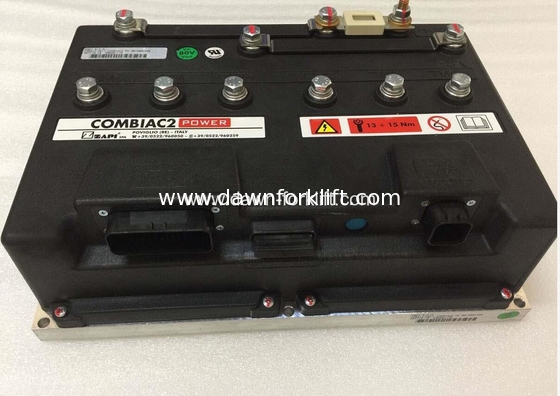

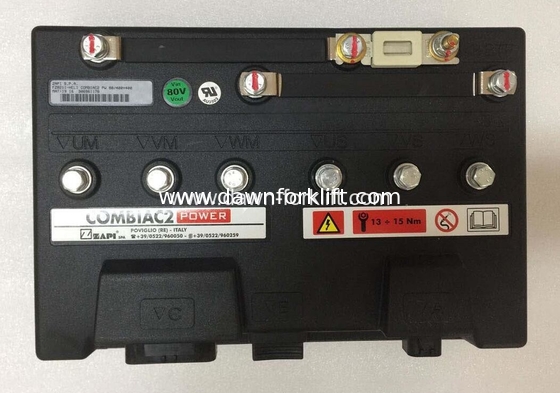

ZAPI COMBIAC2 COMBIAC-2 COMBI AC-2 Inverter 80V 400A+400 FZ8211 AC Motor Controller For HELI Electric Forklift

The CombiAC-2 Inverter is suitable for counterbalanced trucks and reach trucks with single traction motor and AC pump in the 3 to 8 kW power range.

Power section

Power supply: 24V, 36V, 48V, 72V, 80V
Combi AC-2 maximum current:

• (24V) 350+350 Arms (3’)

• (36V, 48V) 330+330 Arms (3’)

• (72V, 80V) 300+300 Arms (3’)

Combi AC-2 PW maximum current:

• (24V) 500+500 Arms (3’)

• (36V, 48V) 450+450 Arms (3’)

• (72V, 80V) 400+400 Arms (3’)

Ambient Temperature range: -40° +40°C
Maximum heatsink temperature: 75°C (starts to reduce current)

Mechanics

AC-2 dimensions: 200x322x129 mm
AC-2 PW dimensions 250x340x129 mm
Connector: Ampseal
Protection: IP65
Available with 20 mm Al base plate or with finned heatsink

I/O

6 Digital inputs (input range - Batt ÷ + Batt )
5 Analog inputs (input range 0 ÷ 12V )
2 Incremental encoder ports
3 Outputs driving to - Batt

Other features

2 microcontrollers
Flash memory
Can interface
Serial link
