ZAPI AC-3 AC3 Inverter FZ8219-INV 80V 600A AC Motor Controller For HELI HC Electric Forklift

1
MOQ
ZAPI AC-3 AC3 Inverter FZ8219-INV 80V 600A AC Motor Controller For HELI HC Electric Forklift
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: Italy
Brand Name: ZAPI
Model Number: AC-3
Payment & Shipping Terms
Delivery Time: 7 days
Payment Terms: Paypal & T/T
Product Description

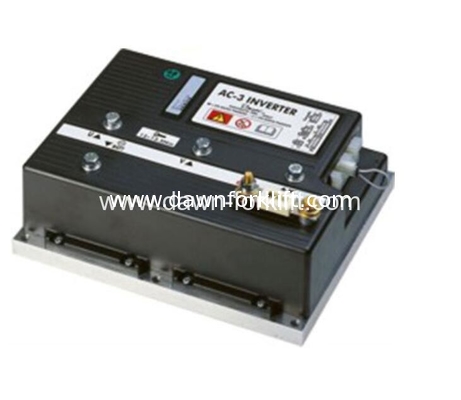

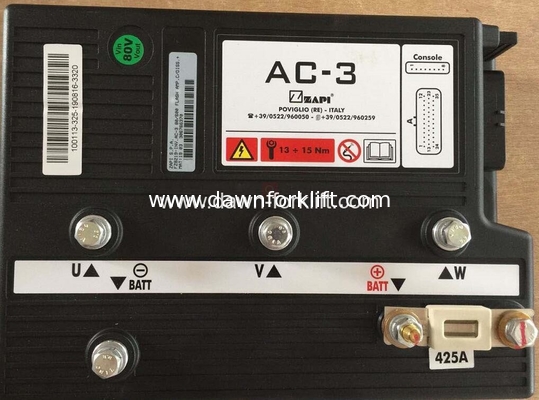

ZAPI AC-3 AC3 Inverter FZ8219-INV 80V 600A AC Motor Controller For HELI HC Electric Forklift



The AC-3 Inverter is suitable for tow tractors and counterbalanced trucks fitted with asynchronous motors up to 20kW



Power section

Power supply: 36V, 48V, 72V, 80V, 96V, 120V
Maximum current:

  • (36V, 48V) 600 Arms (3’)

  • (72V, 80V) 600 Arms (3’)

  • (96V, 120V) 450 Arms (3’)

Continuous output power:

  • (48V) 10000W

  • (80V) 20000W

Ambient Temperature range: -40°C +40°C
Maximum heatsink temperature: 75°C (starts to reduce current)

Mechanics

Dimensions: 250x300x111 mm
Connector: Molex Minifit / Amp Saab / Ampseal
Protection: IP54 / IP65
Available with 20mm Al base plate or with finned heatsink

I/O

8 Digital inputs (input range - Batt ÷ + Batt)
2 Analog inputs (input range 0 ÷ 12V)
1 Analog input: motor temperature sensor
1 Incremental encoder port
2 Outputs driving to -Batt

Other features

Flash memory
Can interface
Serial link
