ZAPI Digital Console Handheld Programmer For ZAPI H0 H2B SEM AC-2 AC Motor Controller

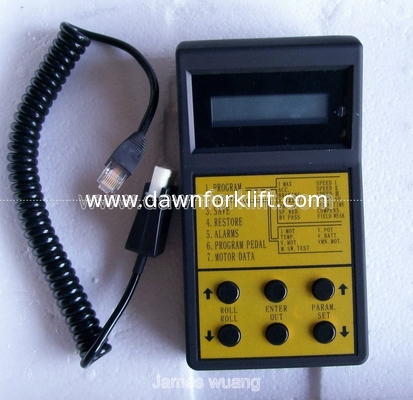

Digital Console
Zapi controllers all have a serial output that is able to communicate with the external systems, such as personal computers. Zapi has developed an intelligent microprocessor based console, with a liquid crystal display, and various programming keys.
Technical details:
PROGRAMMING PARAMETERS:
maximum current, braking, acceleration rate, creep speed, 1st level of speed reduction, 2nd level of speed reduction.
TESTER:
provides a visual display of the analogue and digital measurements within the chopper (battery voltage, motor voltage, motor current, temperature, potentiometer voltage).
RESTORE:
enables a fast and digital return of previously set parameters. This may be used to programme machines that need to have the same operating characteristics.
ALARMS: this function visually displays the last 5 faults.
DIMENSIONS: 100 x 190 x 60 mm
